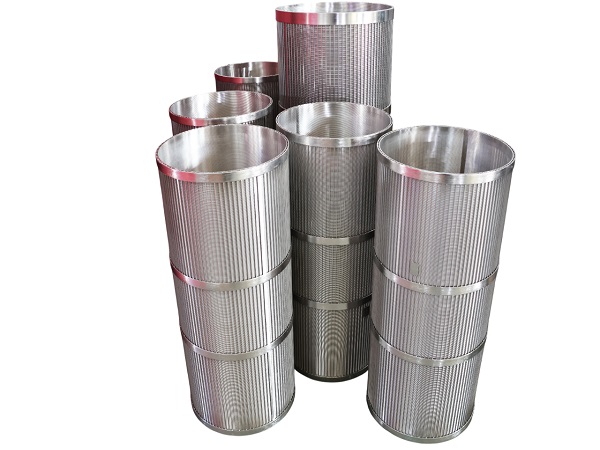

Wedge wire filter element (also called wedge screen filter element or wedge wire mesh filter element) is a metal structure filter element commonly used for solid-liquid separation, filtration, and screening. It is named for its special structure made of wedge-shaped metal wires. This filter element has high structural strength, stable filtration accuracy, high temperature resistance and corrosion resistance. It is widely used in water treatment, petrochemical, food and beverage, papermaking, pharmaceutical and other industries.
Anping Haopeng Wire Mesh Co., Ltd. is a Chinese manufacturer specializing in galvanized wire products, welded wire mesh and mesh fence, perforated metal sheet, expanded metal, stainless steel filter element, wedge wire filter element.
Advantages of wedge wire
1. High strength and durability
High pressure resistance: Wedge wire material is usually made of stainless steel (such as 304, 316L, etc.), which makes it have strong pressure resistance and can be used for a long time under high pressure environment.
Corrosion resistance: Due to the special nature of the material, wedge wire can resist the erosion of various corrosive media such as acids and alkalis, and adapt to complex industrial environments.
2. Stable filtration accuracy
The grid structure of wedge wire makes the filtration accuracy very stable. Since the gap size between the wires is fixed and not easy to deform, its filtration effect remains consistent after long-term use.
This stability is very suitable for occasions where precise control of filtration effect is required, such as chemical, pharmaceutical and other industries.
3. Not easy to clog
Self-cleaning: The special structure of the wedge wire, especially its trapezoidal cross-section, can effectively prevent impurities from clogging the mesh. When the fluid passes through, impurities are easily carried away by the flow, especially when filtering liquids, which can avoid frequent cleaning of the filter.
Since its flow direction is usually from outside to inside or from inside to outside, it can effectively reduce the probability of clogging.
4. Longer service life
Repeated cleaning: The mesh size of the wedge wire structure is uniform, it is not easy to be damaged during cleaning, and it can withstand a large backwashing pressure, so it can be cleaned repeatedly to extend the service life of the filter element.
In many industrial applications, filters often need to be replaced or cleaned, and the wedge wire filter element reduces the frequency of replacement and reduces operating costs due to its durability.
5. High flow capacity
Due to the mesh structure of the wedge wire, the fluid has low resistance during filtration and can provide a higher flow capacity. This makes the wedge wire filter element have advantages in large flow and continuous operation application scenarios, such as high flow applications commonly found in water treatment and petrochemicals.
6. Wide adaptability
Wedge wire filter elements can adjust the gap, thickness and material between the wires according to different needs, and are suitable for solid filtration of various particle sizes.
Suitable for a variety of industries, including water treatment, oil and gas, food processing, papermaking, chemical industry, etc., to meet the needs of different industries.
Application areas of wedge wire filter elements
1. Water treatment
Urban water treatment: Wedge wire filter elements are often used for pre-filtration in drinking water treatment and sewage treatment. They can efficiently remove suspended matter, silt and particles in water to ensure the smooth progress of subsequent treatment processes.
Industrial wastewater treatment: In industrial fields, such as chemical, petroleum, metallurgical and other industries, wedge wire filter elements can be used to remove large particle pollutants and ensure that water quality meets discharge standards.
Seawater desalination: Wedge wire filter elements are often used as pre-filters for reverse osmosis systems in seawater desalination to prevent large particles in seawater from damaging reverse osmosis membranes.
2. Petrochemicals
Oil and gas separation: In the oil and gas industry, wedge wire filter elements are used for oil and gas separation and solid-liquid separation, and can effectively remove solid impurities in oil and gas mixtures.
Catalyst protection: In the process of oil refining, wedge wire filter elements are used to protect catalysts, prevent solid particles from entering the catalytic reactor, and extend the service life of catalysts.
Oil extraction: In the process of oil extraction, wedge wire filter elements can be used to remove large particle impurities in the downhole mud to prevent them from entering the production pipeline system.
3. Food and beverage industry
Liquid filtration: In the process of food processing, wedge wire filter elements can be used to filter liquids such as juice, syrup, beer, etc., remove suspended matter and impurities, and keep the product pure.
Grease filtration: For the extraction process of edible oil and vegetable oil, wedge wire filter elements can effectively filter out solid impurities and residues in the oil to ensure the quality of oil products.
4. Papermaking industry
Pulp filtration: Wedge wire filter elements are widely used in the filtration process of pulp and waste paper. By removing impurities in pulp, paper quality is improved and equipment wear in the production process is reduced.
Clean water recycling: A large amount of wastewater generated in the papermaking process can be filtered through wedge wire filter elements, and after removing suspended matter, it can be recycled to reduce water resource waste.
5. Pharmaceutical Industry
Drug Purification: In the process of drug production, wedge wire filter elements are often used to purify liquid drugs, remove tiny impurities in them, and ensure the purity of drugs.
Biological Product Filtration: Used in the filtration process of biological products (such as vaccines, serum, etc.) to ensure that microorganisms and particulate matter in these products are effectively removed to ensure the safety of products.
6. Chemical Industry
Chemical Solution Filtration: In chemical reactions, wedge wire filter elements are used to remove solid particles in the reaction solution, ensure the quality of the reaction solution, and prevent particles from damaging the equipment.
Catalyst Recovery: In certain chemical processes (such as polymerization reactions), wedge wire filter elements can help recover catalysts, prevent catalyst loss, and improve catalyst utilization.
7. Mining and Metallurgy
Slurry Filtration: In the process of ore extraction, wedge wire filter elements can be used for solid-liquid separation of slurry and remove large particle impurities in slurry.
Metallurgical Wastewater Treatment: In the process of metallurgical production, wedge wire filter elements are used to treat wastewater containing metal impurities and reduce environmental pollution.
8. Plastic and polymer production
Polymer solution filtration: In the production process of plastics and polymers, wedge wire filters are used to filter impurities in liquid plastics to ensure the quality of the final product.
Plastic recycling: Used in the recycling process to filter out residues and impurities in plastics to ensure the purity of recycled materials.
9. Environmental protection and waste treatment
Leachate treatment: In landfills, wedge wire filters can be used to treat leachate to remove solid particles and harmful substances.
Soil and water pollution control: Used in soil and water pollution control to filter solid pollutants in water and help restore environmental quality.
10. Marine and aquatic industry
Aquaculture: Wedge wire filters are used in the aquaculture industry to filter organic matter and particles in water to keep water clean and promote the health of farmed animals.
Mariculture: In the process of mariculture, they are used to remove impurities in seawater and maintain the water quality of the aquaculture environment.
